Antimicrobial Plus Hospital Curtains - Standard Colours

At the curtain manufacturing stage, the polypropylene curtain fabric is impregnated with our unique, patented Endurocide^® Curtain Liquid (which is a water-based formulation, based on a combination of active quaternary ammonium compounds) and a flame retardant chemical.

The Endurocide^® Curtain Liquid coats the fabric with a biostatic and biocidal polymer layer. If pathogens come into contact with the fabric, the Endurocide^® Curtain Liquid layer instantly starts working by trapping the pathogens on the fabric and preventing them from multiplying and being re-transmitted.

Endurocide® Antimicrobial Plus Hospital Curtains kill spores by piercing through their spore coats and cortex and then causing lethal DNA damage to the spore. Endurocide® Antimicrobial Plus Hospital Curtains kill bacteria by first preventing their respiration, then disrupting their cell metabolism and finally inhibiting the cell from reproducing.

Studies have shown that traditional hospital “curtains are rapidly contaminated with potentially pathogenic bacteria” and “curtains are a potentially important site of bacterial contamination in hospitals”¹.

On top of this, further studies show that pathogens such as MRSA, VRE and C.difficile spores are capable of surviving on surfaces for weeks, meaning that hospital workers can touch these contaminated surfaces and then transmit these pathogens onto patients².

Traditional polyester curtains, or standard polypropylene curtains that haven’t been treated with an antimicrobial agent, can quickly & easily become sources of pathogenic transmission.  For example, a healthcare worker who touches the patient could possibly transmit this infection to an object/surface, such as a hospital curtain. If this happens, this object now has the potential to contaminate anyone who comes in contact with the surface. All of this means that traditional Hospital Curtains are a potential source for the spread of healthcare-associated pathogens³.

Endurocide^® Antimicrobial Plus Hospital Curtains were specifically created to help hospitals reduce the potential for this pathogenic transmission to occur from Hospital Curtains and they are therefore effective against the top pathogen groups commonly found in hospitals worldwide:

Sources:

1. 1. Ohl, Michael; Schweizer, Marin; Graham, Maggie; Heilmann, Kristopher; Boyken, Linda; Diejema, Daniel “Hospital privacy curtains are frequently and rapidly contaminated with potentially pathogenic bacteria” American Journal of Infection Control (2012)

   2. Boyce, John M “Environmental contamination makes an important contribution to hospital infection” Journal of Hospital Infection (2007) 65(S2) 50-54

   3. Trillis III, Floyd; Eckstein, Elizabeth C; Budavich, Rachel; Pultz, Michael J; Donskey, Curtis J “Contamination of Hospital Curtains with Healthcare-Associated Pathogens” Infection Control and Hospital Epidemiology (November 2008) Vol. 29, No.11

Traditional curtains have the potential to become sources of transmission for Hospital Acquired Infections (HAIs). To counteract this, in 2005 we created a disposable curtain that offered antimicrobial protection.

However, the major flaw with the antimicrobial system is that it is unable to have an effect against spores such as C.difficile, which can survive on surfaces for very long periods of time. This means that even antimicrobial curtains can have the potential to become a source of transmission of HAIs within the hospital.

Endurocide^® Antimicrobial Plus Hospital Curtains are different to existing curtains on the market because they have been specifically designed to help break the chain of infection and help prevent the spread of HAIs in the hospital, offering a safe to use, long-lasting and powerful curtain capable of killing bacteria, fungi, spores, mycobacteria and enveloped viruses.

Using a patented formula, which is only available on Endurocide^® Antimicrobial Plus Hospital Curtains, the curtains become an effective barrier to the transmission of infections, by trapping and killing pathogens on the curtain surface in seconds!

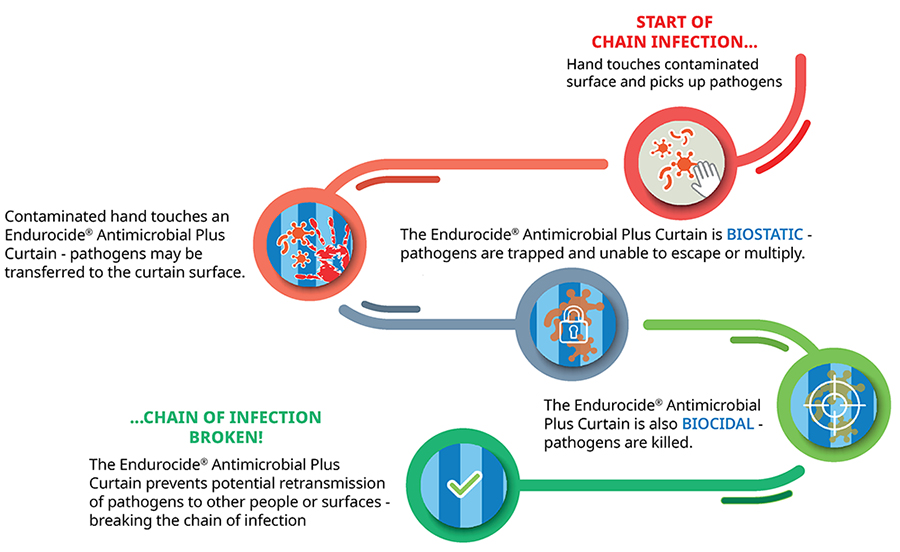

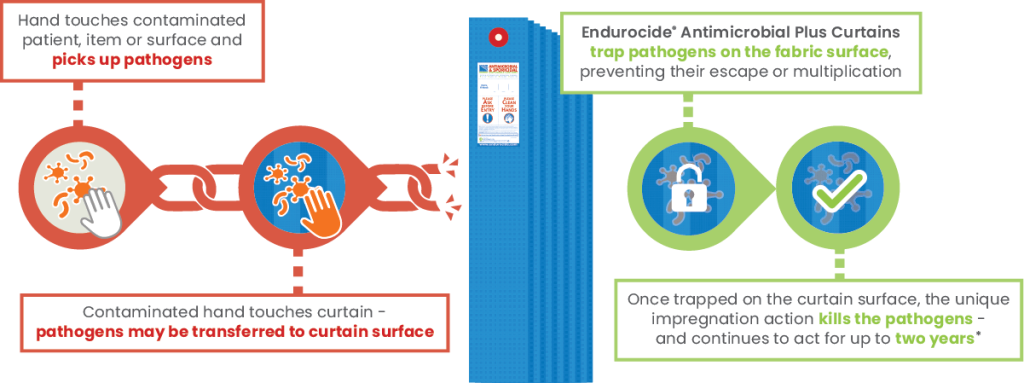

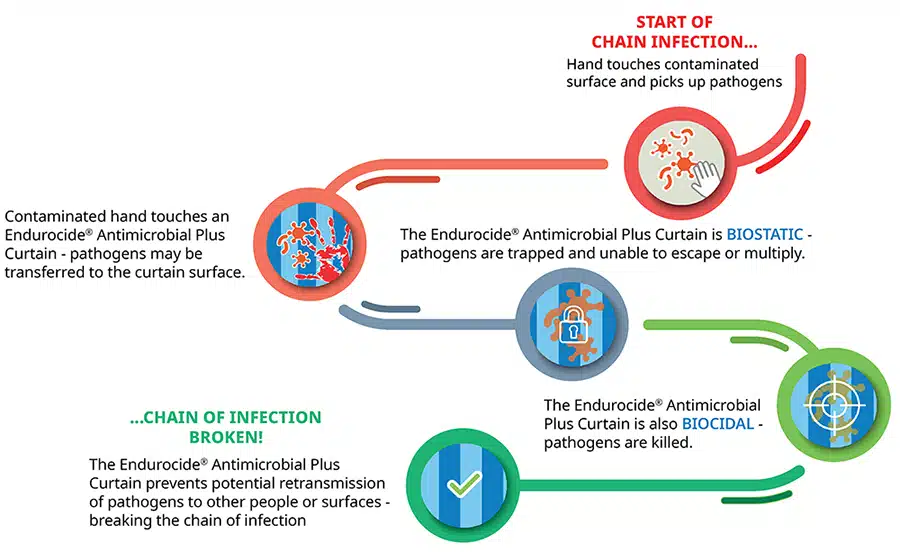

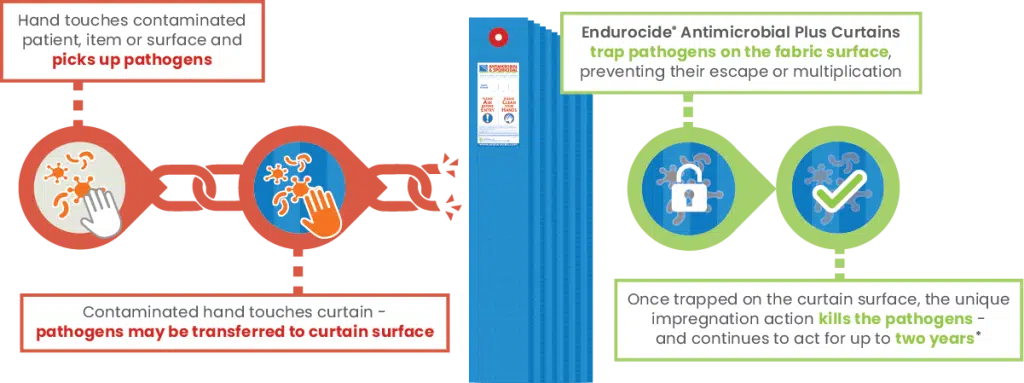

This dual mechanism of trapping & killing the pathogens is key.  The Curtain fabric traps pathogens on the surface, preventing them from being picked up when the Curtain is touched and then, when the pathogens are trapped, the Curtain kills the pathogens, preventing them from multiplying or remaining a risk to users on the Curtain.

Studies have shown that up to 40% of HAIs can be attributed to the cross infection from the hands of health care personnel, who are contaminated either by direct contact with a patient or indirectly by touching contaminated surfaces¹. It has also been shown that contaminated hands can transfer viruses to 5 more surfaces² or 14 other subjects³.

On top of this, pathogens can survive on surfaces for long periods of time, with C.difficile spores and MRSA being shown to survive on surfaces for up to 5 months and 7 months respectively⁴. It is widely understood that hand hygiene protocols and surface disinfection procedures are essential in minimising the potential for this cross contamination.

However, what about the hospital curtain?  What procedures are there to minimise its potential for contamination? If a health care worker touches a contaminated surface and picks up the contamination, then touches a hospital curtain, they have the potential to contaminate the hospital curtain.  With some hospital curtains remaining in-situ for anywhere between one day to six months, these hospital curtains have the potential to become sources of transmission of infections for anyone who comes into contact with them.

Until now there was not much that you could do about this.  However, Endurocide^® Antimicrobial Plus Hospital Curtains have changed this! By being tested and proven to kill spores, bacteria and fungi, Endurocide^® Antimicrobial Plus Hospital Curtains offer an effective barrier to pathogens and help hospitals maintain their hand and surface hygiene protocols – by minimising the potential for the hospital curtain to become a source of infection.

1. 1. Weber, David J; Rutala, William A; Miller, Melissa; Huslage, Kirk; Bennet-Sickbert, Emily “Role of hospital surfaces in the transmission of emerging health care-associated pathogens: Norovirus, Clostridium difficile, and Acinetobacter species” Am J Infect Control (2010) 38 S25-33
   2. Barker, J; Vipond, IB; Bloomfield, SF “Effects of cleaning and disinfection in reducing the spread of norovirus contamination via environmental surfaces” Journal of Hospital Infection (2004) 58:42-44
   3. Von Rheinbaben, F; Schunemann, S; Gross, T; Wolff, MH “Transmission of viruses via contact in a household setting: experiments using bacteriophage strain phiX!!74 as a model virus” Journal of Hospital Infection (2000) 46:61-66
   4. Kramer, Axel; Schwebke, Ingeborg and Kampf, Günter “How long do nosocomial pathogens persist on inanimate surfaces? A systematic review” BMC Infectious Diseases (2006), 6:130

Endurocide^® Antimicrobial Plus Curtains are ready to work as soon as you take them out of the box and have been independently tested and shown to kill pathogens in seconds.

If you would like more information about the testing that has been conducted on our Endurocide^® Antimicrobial Plus Curtains, please visit our Our Technology or International Testing tabs, or contact us for more details on:

We have found that there are numerous products on the market that claim to be antimicrobial, but do not define what this means and what exactly the product is capable of doing.

When comparing products, it is very important to understand how an antimicrobial hospital curtain works and how its effectiveness is tested and verified. It is also important to understand that there are different ways that an antimicrobial curtain can work, for example:

• Does the curtain simply trap the bacteria on the fabric?
• Does it actually kill the bacteria?
• Does it do both?

Endurocide^® Antimicrobial Plus Hospital Curtains are independently tested and shown to not only trap the pathogens on the fabric, but to also kill them – meaning that the curtains are sporistatic, bacteriostatic, sporicidal and bactericidal.

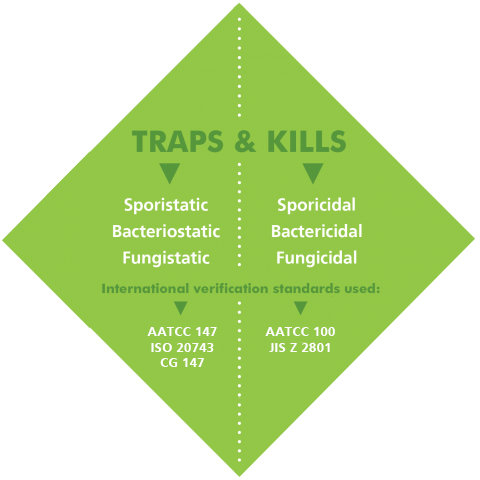

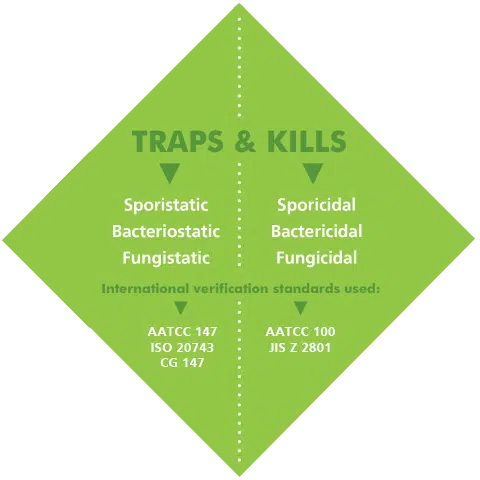

Sporistatic & Bacteriostatic

These terms refer to whether a curtain is capable of inhibiting the growth and reproduction of spores and bacteria. As our Endurocide^® Antimicrobial Plus Hospital Curtains have been independently tested and shown to be both Sporistatic and Baceteriostatic, our curtains will trap any spores and bacteria that come into contact with the curtain and prevent these pathogens from escaping and being re-transmitted to another surface.

• The International Standards to demonstrate that a fabric is Sporistatic and Bacteriostatic are AATCC 147 & CG 147. These tests are qualitative tests, in that they evaluate the fabric’s antimicrobiality.

Sporicidal & Bactericidal

This means that the curtain is capable of actually killing the spores and the bacteria on the surface of the curtain, preventing them from multiplying and becoming a source of transmission.

• The International Standards to demonstrate that a fabric is Sporicidal and Bactericidal are ISO 20743, AATCC 100 and JIS Z 2801. These tests are quantitative tests, in that the number/reduction of bacteria on the curtain is counted.

Although we refer to the Endurocide^® Antimicrobial Plus Hospital Curtains as being primarily Sporicidal & Antimicrobial, it is important to understand that in order for the curtain to be truly effective, it must have been tested and shown to be both Sporistatic & Bacteriostatic as well as being Sporicidal & Bactericidal.

As far as we are aware, our patented Endurocide^® Antimicrobial Plus Hospital Curtains are the only curtains available on the market that can claim this!

Endurocide^® Antimicrobial Plus Curtains have been designed to be used wherever Infection Control & Infection Prevention is of paramount concern.

We would recommend that Endurocide^® Antimicrobial Plus Curtains should be used in, amongst others, Intensive Care Wards, High Dependency Units, Isolation Wards, Burn Units, Cardiology Wards, General Surgery Wards, Maternity Wards, Neonatal Wards and Orthopaedic Wards.

Please refer to the table below for more information:

All Endurocide^® Curtains should be stored at ambient temperatures – i.e. at a maximum of 25°C max – and out of direct UV light.

If stored as above, Polypropylene remains stable for approximately 12 months, but after this time will start to gradually degrade.  This degradation process will occur at a faster rate in the presence of warm/high temperatures, humid conditions and most importantly in the presence of UV light.

Any timescales provided/referenced are always offered as a guideline only and under no circumstances whatsoever constitute a guarantee.

Yes: every box of Endurocide^® Curtains includes an Instruction Sheet in order to give our end users clear information on how to use and get the most out of their curtains.

• To download a copy, please click here.

No: disposable curtains are designed to be replaced when visibly soiled and it is not advised to clean any of our curtains by any mechanical means.

Regarding Endurocide^® Antimicrobial Plus Curtains, wiping or cleaning them may affect the performance of the patented sporicidal formulation coated onto the curtain surface. The curtains are designed to kill pathogens in-situ and do not require any cleaning to improve their function.  When any of our curtains become visibly soiled, they should always be replaced.

No: it is recommended that Endurocide^® Antimicrobial Plus Curtains are taken down when disinfecting with a misting/fogging machine.

The peroxide used in fogging/misting operations may react with the patented formulation coated onto the curtain’s surface and over time reduce the effectiveness against pathogens. The use of peroxide is also likely to affect the labels affixed to the curtains, resulting in a visible discoloration of the information on the curtain label.

It is advised that Endurocide^® Antimicrobial Plus Curtains are not placed in areas where they are exposed to prolonged direct sunlight.

Although the curtains will still be effective against pathogens, the polypropylene material the curtains are made from is not UV resistant and may suffer accelerated ageing as a result: this will lead to a loss in tensile strength and elasticity of the curtains which will become visible as “pilling”.

Pilling is caused by the fibres in the polypropylene becoming brittle with UV exposure, breaking down and coming loose from the main fibre chains. This effect is normally only observed after several months in direct sunlight.

Any timescales provided/referenced are always offered as a guideline only and under no circumstances whatsoever constitute a guarantee.

Endurocide^®  Antimicrobial Plus Curtains are available supplied with eyelets only or with a choice of seven different hanging systems so will fit work with most popular track systems.

• For further information on the Hanging Systems available, please refer to the Product Options tab.

When choosing the type of hook you order with your curtain, it’s important that you order the correct size to fit your railing – and with so many types of railings available worldwide, this is sometimes easier said than done!

There are two ways to help ensure the hook will be suitable for your railing:

	Hook measurements: take the measurements of your existing hooks. The two dimensions you require are head/glider width (A) and neck width (B).
	Railing measurements: if available, use the inner measurements of your railing. The two dimensions you require are inner width (X) and channel width (Y).
	These measurements will make sure your hook fits in your railing and is neither too big (won’t fit) nor too small (will fall out)!

As a quick guide to our different types of hooks, please see the information below:

Hook Type	Order Code	Image	Head width (A)	Neck width (B)	Suitable for railing system*
Quick-Fit	QF		10.0mm	4.0mm	Silent Gliss 6100
Wheeled	WH		9.5mm	4.5mm	Silent Gliss 6100
Large-Top	LT		14.0mm	3.0mm	Movatrack 100
Wide-Wheeled	WWH		12.0mm	4.5mm	Movatrack 100
Metal-Bar Wide-Wheeled	MWW		12.0mm	4.5mm	Movatrack 100
U-Type	U		N/A**	N/A**	Marlux Fast-Fit

If you would like a sample pack of the different hooks we have available, please contact us.

Please note: it is important to ensure that the same hook is used throughout your Curtain.  You should never mix hooks types or hook suppliers on one Curtain, as even similar type hooks can have significant differences in dimensions.  To ensure uniform glide of your Curtain in the railing, rails should be regularly cleaned, free from obstacles or gaps and all hooks should be hung at the same height.  Bio Technics accepts no responsibility for the performance of railings.

* The railings given are examples of commonly available systems – it is not meant to suggest that this is the only system that these hooks are suitable for use with.

** The X and Y measurements are not applicable to our U-Type hooks as these are designed to fit over the railing.

All Endurocide^® Curtains are manufactured from 100% recyclable polypropylene and are completely recyclable.  However, as the curtains are designed to come in contact with potential hospital pathogens, we would recommend that after use Endurocide^® Curtains be disposed of as hospital waste or in accordance with local regulations.

For those customers concerned with the whole life of their products, there is the possibility of incinerating the curtains after use for their calorific value.  Polypropylene has a high calorific value and one full width curtain could potentially generate enough energy to light a standard light bulb for an hour and a half.

However, any hospital specific protocols or local regulations concerning the safe disposal of clinical waste should always be adhered to.

Each hospital and sometimes individual wards (depending on the ward type and purpose) will have their own specific protocols and assessments regarding the changing of curtains and these should be adhered to.

However, Endurocide^® Antimicrobial Plus Hospital Curtains have been independently tested and shown to offer antimicrobial & sporicidal properties for up to two years after manufacture. These test results have been demonstrated in both laboratory ‘box fresh’ test results, as well as independent peer review tests demonstrating real-life, in-situ testing by hospitals over a period of two years. For more information on these tests please click here, or contact us directly and our Technical Team will be happy to chat through any questions you may have.

Please note that Endurocide^® Antimicrobial Plus Hospital Curtains are designed to be disposable and as such use polypropylene fabric. Should the polypropylene fabric become visibly dirty/soiled, we would recommend that the curtains should be changed, as they are not designed to be cleaned or washed.

Any timescales provided/referenced are always offered as a guideline only and under no circumstances constitutes a guarantee. The length of curtain hanging time will depend on individual ward use.

Yes: we have conducted an in-depth analysis of the individual chemical components present in our patented formulation which is then applied to our Endurocide^® Antimicrobial Plus Curtains as a chemical blend during the treatment process.

To assess the risk of these individual chemical components, we have undertaken a technical analysis of the data available in the public domain and based assessments upon potential absorption and body mass calculations.

For the purposes of our assessments:

• • We calculated that each standard, full width curtain is 15m² (width: 7.5m x height: 2m).  The Endurocide^® treatment blend is uniformly applied to the curtain and equally distributed across the surface.
  • We chose an area of the curtain approximately twice the surface area of the average hand (0.05m² or 500cm²) and then calculated the mg/m² of chemical blend used in this area.
• • We then assessed the mg/m² quantity of chemical blend in this single contact area for:
    • Acute Toxicity risks
    • Repeated Dose risks
  • Calculations were based on average weighted UK males and females.

Conclusions:

 Glossary of Terms & Clarifications:
